DRO PROS currently carries Lathe kits from EASSON, NEWALL and FAGOR. Check out our selection of EASSON Lathe kits by clicking HERE. Check out our selection of FAGOR Lathe kits by clicking HERE.
Nothing says quality more than the NEWALL name, and now you can get NEWALL quality at an unheard of price! Of course, DRO PROS is a NEWALL authorized dealer of digital readout equipment. The NEWALL M20 Lathe package is a 2 axis kit currently available in 5 different sizes. It includes everything you need - a display head, mounting arm, power cord, detailed installation manual, a super detailed operators manual, two 0.0002" resolution scales, shields, mounting hardware, brackets, etc. Outfit your machine today with NEWALL quality at a DRO PROS price!
NEWALL M20 2 axis Lathe kit:
The NEWALL M20 two axis Lathe kit includes everything you need - the display head, mounting arm, power cord, detailed installation instructions, a super detailed easily readable operators manual, 2 IP-67 rated scales of 0.0002" resolution, mounting hardware, brackets, etc. Confused? Don't be - Call us toll free anytime at 1-877-628-6028!
Click the image above for a larger picture)
Here is a picture of what the 2 axis NEWALL M20 Lathe kit includes:
NOTE: Items are shown out of their protective bubble wrap and factory boxes to better illustrate what is included in the kit. All of our kits ship in their original factory packaging and boxes.
A Description of
the
NEWALL M20 Features:

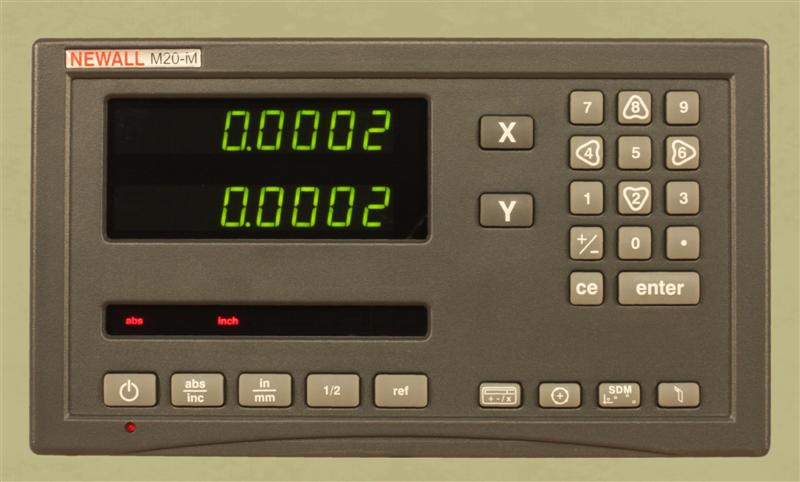

Newall M20
2 Axis Lathe Machine Display:
Newall M20 Basic and Special Functions Explained:
Inch/Metric Display - Allows the operator to choose between inch and metric display. Resolution is .0002" or .005mm.
Enter
Dimensions - Allows operator to manually input desired dimension /
coordinate. ABS/INC Coordinate Display Switch - Allows the operator to switch between absolute and incremental display. 'Absolute' display references the work piece zero coordinate you designate. You may choose the absolute center point of your workpiece or perhaps a corner of your workpiece, the decision is yours. Incremental display references any arbitrary coordinate/position without losing your designated zero point. For example, to locate a point exactly in the middle of your workpiece you would most likely use 'absolute' display to locate the point. To locate points exactly .78 distant from an arbitrary point somewhere in the middle of your workpiece, you would then switch to 'incremental' display, designate the present position as a zero point, and then simply move your workpiece until .78 was displayed. Built In Calculator - The display includes a built in calculator function which provides normal mathematical functions such as: add, subtract, multiply, divide, sin, cosine, tangent, etc. 20 Reference Datum Points - In many batch machining operations, the operator has to switch between 'absolute' and 'incremental' displays many times, which is not convenient and can potentially lead to mistakes. The 20 Reference Datum Points feature allows the operator to designate up to 20 separate data points, which greatly simplifies machining of repetitive parts. Power off memory - This function allows the operator to store the work piece zero position in memory. If the machine is turned off at night or there is a power failure, the zero reference points can be recovered without having to reestablish the work piece zero point.
Bolt Hole Circle - Allows the
operator to drill holes in a circle from a designated center point. Linear Error Compensation - Common to all of Fagor's displays, provides improved display accuracy.
Our goal is to provide our customers the best value DRO products on the market
In order to achieve this goal, we pledge the following three "Reasons to buy from DRO PROS":
Number 2 reason to buy from DRO PROS: We answer our phones. Good luck understanding or getting ahold of the "other guys". We hear this every day - "I bought a DRO from the "other guys" but when I got it one of the scales is too long - now I'm stuck with it and he's not returning my phone calls..." We all know you get what you pay for. Buying a DRO without proper support or tech help is simply not a good idea.
Number 3 reason to buy from DRO PROS: You'll get it fast. We carry our own inventory of Easson and Newall products on site, in the USA, not overseas. This means we ship our products the same or next day at the latest, depending on what time you place the order. This means you get your order in 2-3 days, not 2-3 months. Check out what customers say about the "other guys": "Had no inventory, slow shipping...", "somewhat slow on the shipping though", "slow shipping, no returned phone calls", "slow shipping from supplier". This is not the type of service you'll get from DRO PROS.
NOTE: All DRO PROS digital readout components carry a 1 year warranty. At DRO PROS, we take care of our customers. Have an issue or need some help? Let us take care of it with a toll-free call to California! Call us now TOLL FREE within the United States at 1-877-628-6028! (Customers outside the United States can always reach us at (707) 452-8437)
